What is Ground Penetrating Radar?

Ground penetrating radar (GPR) is a nondestructive geophysical method that produces a continuous cross-sectional profile or record of subsurface features, without drilling, probing, or digging. The GPR cross-section shows the ground surface at the top of the profile, and the reflections of subsurface geologic units and objects to a certain depth at the bottom.

GeoModel, Inc. GPR profile obtained at a cemetery site



Ground penetrating radar (GPR) profiles are used for evaluating the location and depth of buried objects and to investigate the presence and continuity of natural subsurface conditions and features, as seen in the two examples below.

Three buried tanks located by GeoModel, Inc. using GPRGeoModel, Inc. karst bedrock topography using GPR

Three Buried Tanks (on left) and Irregular Karst Bedrock Topography (on right)




Ground Penetrating Radar Basic Operating Principles

Ground penetrating radar operates by transmitting pulses of ultra high frequency radio waves (microwave electromagnetic energy) down into the ground through a transducer (also called an antenna).

GeoModel, Inc. 400-MHz antennaGeoModel, Inc. 200-MHz antenna

GeoModel, Inc. 400-MHz Antenna (on left) and 200-MHz Antenna (on right)
(Manufactured by GSSI - Geophysical Survey Systems, Inc.)



The ground penetrating radar antenna (transducer) is pulled along the ground by hand or behind a vehicle.

Hand-towed GPRVehicle-towed GPR

Hand-towed 400-MHz antenna GPR Survey and Vehicle-towed 200-MHz antenna GPR survey



The transmitted energy is reflected from various buried objects or distinct contacts between different earth materials.

GPR signal transmission, geomodel.com

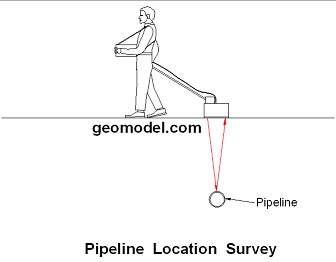

Diagram showing how the GPR signal reflects from a Buried Pipe and returns to the GPR antenna



The antenna then receives the reflected waves and stores them in the digital control unit (computer).

GeoModel, Inc.'s SIR-2 GPR Digital Control UnitGeoModel, Inc.'s SIR-3000 GPR Digital Control UnitGSSI's SIR-4000 GPR computer

SIR-2 GPR (Left), SIR-3000 (Center) and SIR-4000 (Right) Digital Control Units
(Manufactured by GSSI - Geophysical Survey Systems, Inc.)



The GPR antenna needs to have good contact with the ground surface in order for the GPR antenna to register the ground surface. When the GPR antenna signal does this, it creates an "air wave" as shown in the GPR image below.

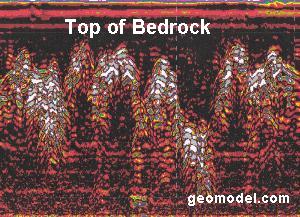

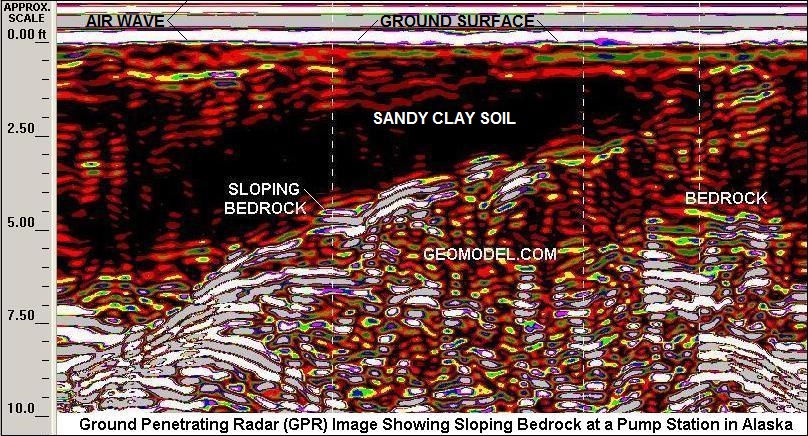

When the transmitted signal enters the ground, it contacts objects or subsurface strata with different electrical conductivities and dielectric constants. Part of the ground penetrating radar waves reflect off of the object or interface; while the rest of the waves pass through to the next interface. On the right side of the bedrock GPR image below, the sloping depth to top of bedrock can be seen above a more-reflective bedrock layer.

Principles of GPR - Cross-Sectional Profile



The reflected signals return to the antenna, pass through the antenna, and are received by the digital control unit. The control unit registers the reflections against two-way travel time in nanoseconds and then amplifies the signals. The output signal voltage peaks are plotted on the ground penetrating radar profile as different color bands by the digital control unit.

For each reflected wave, the radar signal changes polarity twice. These polarity changes produce three bands on the radar profile for each interface contacted by the radar wave.

The depth scale for the GPR profile is calculated from the two-way travel time in nanoseconds and the dielectric constant (DI) of the subsurface soils or rocks.




How Deep Can Ground Penetrating Radar Go Into the Ground?

The depth to which ground penetrating radar waves can reach beneath the ground surface is mainly dependent on two conditions: 1) the type of soil or rock in the GPR survey area, and 2) the frequency of the antenna used.

Ground penetrating radar can reach depths of up to 100 feet (30 meters) in low conductivity materials such as dry sand or granite. Moist clays, shale, and other high conductivity materials, may attenuate or absorb GPR signals, greatly decreasing the depth of penetration to 3 feet (1 meter) or less.

The depth of penetration is also determined by the GPR antenna used. Antennas with low frequencies of from 25 to 200 MHz obtain subsurface reflections from deeper depths (about 25 to 100 feet or more), but have low resolution. These low frequency antennas are used for investigating the geology of a site, such as for locating sinkholes or fractures, and to locate large, deeply buried objects.

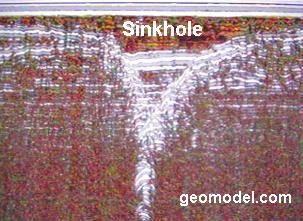

Classic sinkhole discovered by GeoModel, Inc. using GPRDeep Burial Trenches located by GeoModel, Inc. with deep GPR



Antennas with higher frequencies of from 300 to 1,500 MHz obtain reflections from shallow depths (0 to about 18 feet), and have high resolution. These high frequency antennas are used to investigate surface soils and to locate small or large, shallow, buried objects, such as utilities, gravesites, and also rebar in concrete.

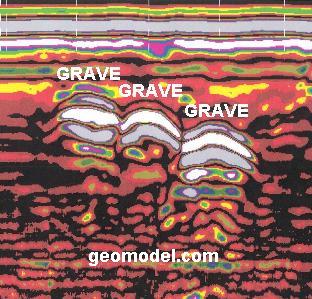

Multiple underground pipes detected by GeoModel, Inc. using ground penetrating radar Gravesites located by GeoModel, Inc. with GPRGeoModel, Inc. ground penetrating radar image of rebar and pipe conduit in concrete






GeoModel, Inc. conducts ground penetrating radar surveys using a SIR-2 or SIR-3000 digital control unit and various antennas with frequencies ranging from 200 to 1,500 MHz. The GeoModel, Inc. principals have over 50 years of combined experience and conduct GPR surveys nationwide. GeoModel, Inc. professionals are known for locating utilities adn other buried features that other less-experienced companies cannot locate.
